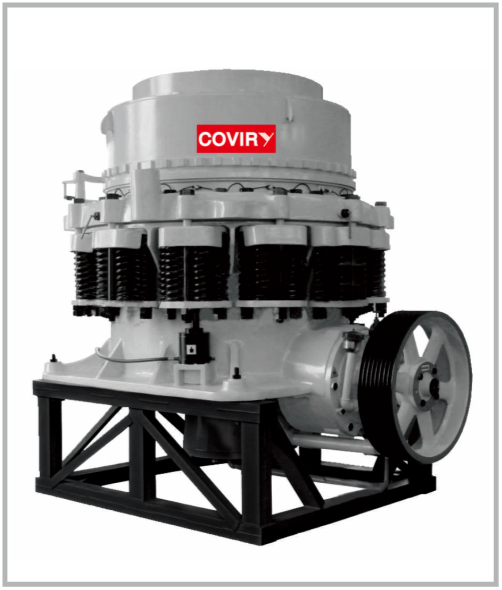

CCG series cone crusher

CCG series spring cone crusher adopts the optimal combination of stroke and eccentricity. CCG series cone crusher produces more fines during crushing due to inter-particle crushing and it also produces more cubical shaped output. Spring insurance, hydraulic adjustment and cavity clearance make operation very easy. It is also very simple for maintenance and it is an ideal choice for cone crushers in crushing plants.

Consultation hotline

0751-8721 999

Product featues Product photos Technical parameters Inquiry

Product featues

1. Equipped with hydraulic system to assist in setting adjustment and cavity clearance, easy for operation

2. Optimized cavity design enables 15-20% higher throughput, multiple cavity options to meet different working conditions

3. Grease sealing prolongs service life

4. New type of lubrication system ensures good lubrication effect and long-term stable operation of the equipment

5. Sturdy structure, easy operation and maintenance

Product photos

Technical parameters

Model	Max. Feed size (mm)	Closed side setting (mm)	Capacity (t/h)	Weight (kg)	Motor power (kW)	Overall dimensions (mm)
CCG130B	160	22-50	120-230	22	130	3930×2190×2550
CCG130Z	100	15-30	70-160	22	130	3930×2190×2550
CCG130D	70	8-19	60-140	22	130	3930×2190×2550
CCG240T	260	42-70	380-560	32	240	3150×2790×3110
CCG240B	220	32-60	300-470	32	240	3150×2790×3110
CCG240Z	160	25-38	250-330	32	240	3150×2790×3110
CCG240X	120	20-38	200-330	32	240	3150×2790×3110
CCG240DT	120	16-32	175-328	32	240	3150×2790×3110
CCG240D	90	13-25	150-280	32	240	3150×2790×3110
CCG240DZ	60	10-25	130-270	32	240	3150×2790×3110
CCG240DX	40	7-20	105-215	32	240	3150×2790×3110
CCG280T	280	50-70	480-660	39.6	280	3570×3460×3550
CCG280B	230	38-60	400-570	39.6	280	3570×3460×3550
CCG280Z	170	28-42	330-400	39.6	280	3570×3460×3550
CCG280X	125	22-38	240-360	39.6	280	3570×3460×3550
CCG280DT	120	19-32	270-370	39.6	280	3570×3460×3550
CCG280D	100	15-25	230-330	39.6	280	3570×3460×3550
CCG280DZ	70	12-25	200-330	39.6	280	3570×3460×3550
CCG280DX	50	9-20	160-280	39.6	280	3570×3460×3550

Note: technical parameters are subject to change without prior notice.
