CF series impact crusher

CF series impact has a large feed opening and is capable of crushing all kinds of coarse, medium and fine materials (granite, limestone, concrete etc.) with compressive strength of up to 350MPa. It is widely used in areas such as highway construction, water conservancy and hydro-power plants. It is featured by high reduction ratio, high-quality cubical shaped end product, high crushing efficiency and easy maintenance etc.

Consultation hotline

0751-8721 999

Product featues Product photos Technical parameters Inquiry

Product featues

1. Large feed opening, high crushing cavity, adaptable to hard and big boulders

2. High-chrome blow bars with high resistance to impact and wear

3. High-quality cubical shaped end product with high compressive strength

4. Compact and rigid structure, rotor with large moment of inertia

5. Adjustable gap between breaker plates and blow bars to effectively control product size

6. Multiple applications including crushing and shaping

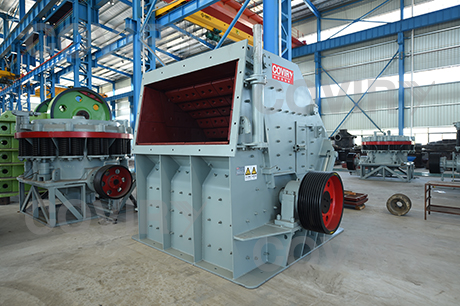

Product photos

Technical parameters

Model		CF1010	CF1214	CF1313	CF1315	CF1620	CF1315Q	CF1520Q
Rotor dimensions（mm）		Φ1000×1050	Φ1250×1400	Φ1300×1320	Φ1300×1500	Φ1650×2000	Φ1300×1500	Φ1550×2000
Feed opening size（mm）		1080×530	1440×520	1330×745	1522×827	2030×950	1522×950	2030×1020
Max. feed size（mm）	<150MPa	350	350	450	550	600	600	800
Max. feed size（mm）	<250MPa	200	200	250	350	400	400	500
Capacity （t/h）		60-150	90-180	150-280	180-300	450-550	250-300	400-500
Motor power（kw）		110	132	220	250	*2802**	250	*2502**
Optional motor power（kw）		110-132	132-160	200-250	220-280	500-630	250	*2502**

Note: technical parameters are subject to change without prior notice.
