CSY series screens

CSY series vibrating screen has an adjustable amplitude and multiple deck options for separation of different size classes of material. It is widely used in quarries, mines, beneficiation, construction material, power plants and chemical industry etc.

Consultation hotline

0751-8721 999

Product featues Product photos Technical parameters Inquiry

Product featues

1. The eccentric weights in the vibrator can generate high eccentric force

2. The screen box and cross beams are connected together with huckbolts and the welding-free structure makes it very rugged and durable

3, The structure is simple and easy for maintenance

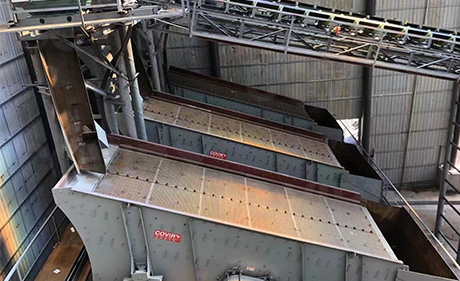

Product photos

Technical parameters

Model	Mesh size （mm）	Max. feed size （mm）	Aperture size （mm）	Capacity （t/h）	Vibrating frequency （t/m）	Amplitude （mm）	Inclination angle （°）	Motor power （kw）	Overall dimensions （mm）
CSY1550-2	1500×5000	≤200	5-30 / 40-80	50-190 / 250-500	800	7-10	18	11	5626×2350×1100
CSY1550-3	1500×5000	≤200	5-30 / 40-80	50-190 / 250-500	800	7-10	18	15.5	5796×2350×1630
CSY1860-2	1800×6000	≤200	5-30 / 40-80	75-290 / 380-760	800	7-10	20	18,5	6855×2652×1320
CSY1860-3	1800×6000	≤200	5-30 / 40-80	75-290 / 380-760	800	7-10	20	22	7060×2652×1884
CSY2060-2	2000×6000	≤200	5-30 / 40-80	85-320 / 420-840	800	7-10	20	18,5	6855×2852×1320
CSY2060-3	2000×6000	≤200	5-30 / 40-80	85-320 / 420-840	800	7-10	20	22	7060×2852×1884
CSY2270-2	2200×7000	≤200	5-30 / 40-80	95-350 / 465-930	800	7-10	20	22	7726×3016×1350
CSY2270-3	2200×7000	≤200	5-30 / 40-80	95-350 / 465-930	800	7-10	20	30	7921×3016×1884
CSY2570-2	2500×7000	≤300	5-30 / 40-80	100-385 / 510-1020	800	7-10	20	30	8092×3473×1540
CSY2570-3	2500×7000	≤300	5-30 / 40-80	100-385 / 510-1020	800	7-10	20	37	8299×3488×2110
CSY3075-2	3000×7500	≤300	5-30 / 40-80	130-480 / 640-1280	800	7-10	20	30×2	8889×4114×1880
CSY3075-3	3000×7500	≤300	5-30 / 40-80	130-480 / 640-1280	800	7-10	20	37×2	9774×4114×2500
CSY3675-2	3600×7500	≤300	5-30 / 40-80	160-600 / 800-1600	800	7-10	20	37×2	8724×4764×1950
CSY3675-3	3600×7500	≤300	5-30 / 40-80	160-600 / 800-1600	800	7-10	20	45×2	8877×4764×2520
CSY3380-2	3300×8000	≤300	5-30 / 40-80	160-600 / 800-1600	800	7-10	21	30×2	9417×4236×1920
CSY3380-3	3300×8000	≤300	5-30 / 40-80	160-600 / 800-1600	800	7-10	21	37×2	9648×4243×2520

Note: technical parameters are subject to change without prior notice.
